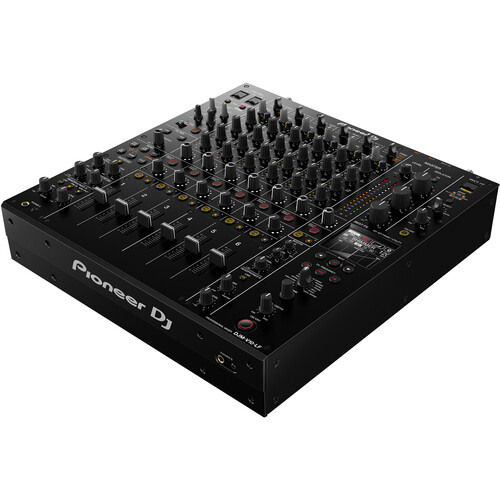

Pioneer DJ DJM-V10-LF 6-Channel Professional DJ Mixer

Add to wishlist
SKU: N/A
Add to wishlist

$400.00

Compare

Description

Pioneer DJ DJM-V10-LF/UXJCB Specs

Key Specs
Configuration
DJ Mixer
Number of Channels
6x Stereo
2x Mic
Performance Controls
Beat Sync, Brake, Compression, FX, High-Pass Filter, Low-Pass Filter, Voice Ducking
Built-In Effects
Delay, Delay (Stereo/Ping Pong), Reverb
Audio Inputs
4x Stereo 2RCA TS Phono Input
6x Stereo 2RCA Coaxial Line Input
6x 1/4″ TRS Return Input
1x Combo XLR-1/4″ TRS Mic Input
1x 1/4″ TRS Mic Input
6x RCA Digital Coaxial Input
Audio Outputs
1x XLR 3-Pin AES3/Master Output
2x XLR 3-Pin Master Output
1x Stereo 2RCA Coaxial Unbalanced Master Output
1x Stereo 2RCA Coaxial Unbalanced Record Output
2x 1/4″ TRS Booth Output
6x 1/4″ TS Send Output
2x 1/4″ TRS Headphone Output
2x 1/8″ / 3.5 mm TRS Headphone Output
USB
1x USB-A (Audio I/O)
2x USB-B (Host Connection/MIDI)
Number of Channels
6x Stereo
2x Mic
Platter/Jog Wheel
No
Faders
6x 2.4″ / 60 mm Channel Level
Meters
Channel Meter:
6x Multi-Segment LED
Main Meter:
2x Multi-Segment LED
Display
Main Display:
1x OLED
Sample Pads
No
EQ
6x Channel EQ:
Hi: -∞ to +6 dB
Hi-Mid: -26 to +6 dB
Lo-Mid: -26 to +6 dB
Low: -∞ to +6 dB
1x Mic EQ:
Hi: ±12 dB
Low: ±12 dB
1x Master EQ:
Hi: -∞ to +9 dB
Mid: -∞ to +9 dB
Low: -∞ to +9 dB
Performance Controls
Beat Sync, Brake, Compression, FX, High-Pass Filter, Low-Pass Filter, Voice Ducking
Built-In Effects
Delay, Delay (Stereo/Ping Pong), Reverb
Sample Rates
96 kHz
Bit Depths
32-Bit (AD/DA Conversion)
Stems Processing
No
Connectivity
Audio Inputs
4x Stereo 2RCA TS Phono Input
6x Stereo 2RCA Coaxial Line Input
6x 1/4″ TRS Return Input
1x Combo XLR-1/4″ TRS Mic Input
1x 1/4″ TRS Mic Input
6x RCA Digital Coaxial Input
Audio Outputs
1x XLR 3-Pin AES3/Master Output
2x XLR 3-Pin Master Output
1x Stereo 2RCA Coaxial Unbalanced Master Output
1x Stereo 2RCA Coaxial Unbalanced Record Output
2x 1/4″ TRS Booth Output
6x 1/4″ TS Send Output
2x 1/4″ TRS Headphone Output
2x 1/8″ / 3.5 mm TRS Headphone Output
Other I/O
1x DIN 5-Pin Output
1x RJ45 Link (100 Base-TX)
Phantom Power
No
USB
1x USB-A (Audio I/O)
2x USB-B (Host Connection/MIDI)
Wireless
No
Media Card Slots
No
Performance
Frequency Response
Line:
20 Hz to 40 kHz
SNR
Line:
105 dB
Phono:
88 dB
Mic:
79 dB
THD
Line:
<0.005%
Compatibility
Included Software
No
Compatible Software (Not Included)
rekordbox DVS
Traktor DVS
Serato DJ DVS
OS Compatibility
Computer: macOS / Windows
Mobile: iOS Only
OS Compatibility
macOS
Windows
Mobile App Compatible
Yes: iOS Only
App Name: DJM REC
Power
Power Requirements
AC Input
Power Supply Output
Included
AC Power I/O
1x IEC (Locking)
Physical
Dimensions (W x D x H)
17.2 x 18.4 x 4.3″ / 43.8 x 46.7 x 10.8 cm
Weight
26.2 lb / 11.9 kg
Packaging Info
Package Weight
36.7 lb
Box Dimensions (LxWxH)
24.5 x 20.75 x 9.5″
